Description
- Type: Connectors
- Package: Yes
- Products Status: STOCK
- Model Number: C5URJ45T
- Type: RJ45
- Application: PCB/Networking Cable
- Gender: Male
- Keywords: Cat5e RJ45 Connector
- Connector Type: Unshielded
- Packaging Details: 30pieces per Bag

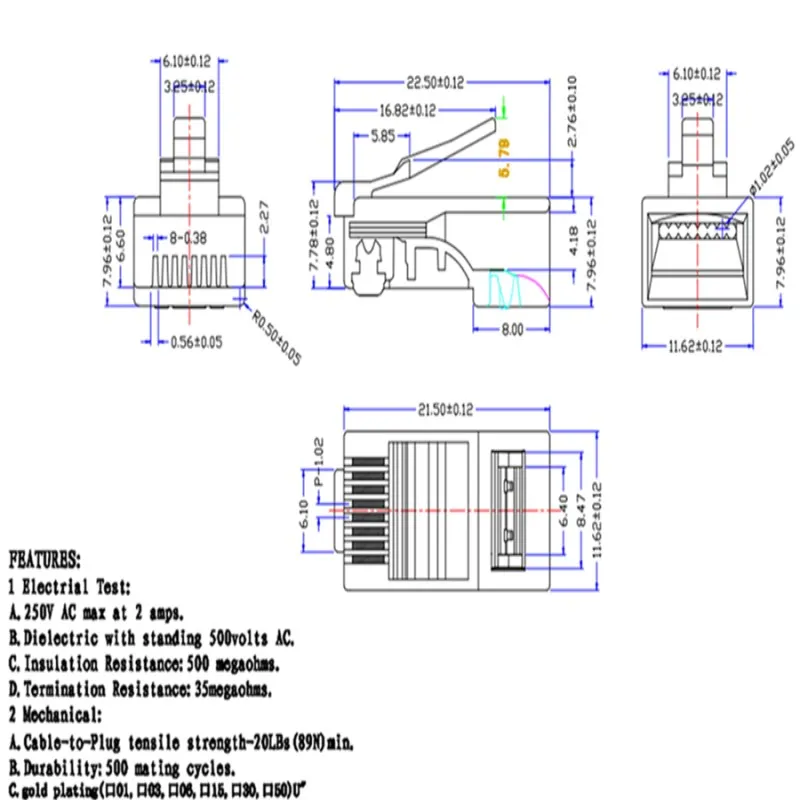

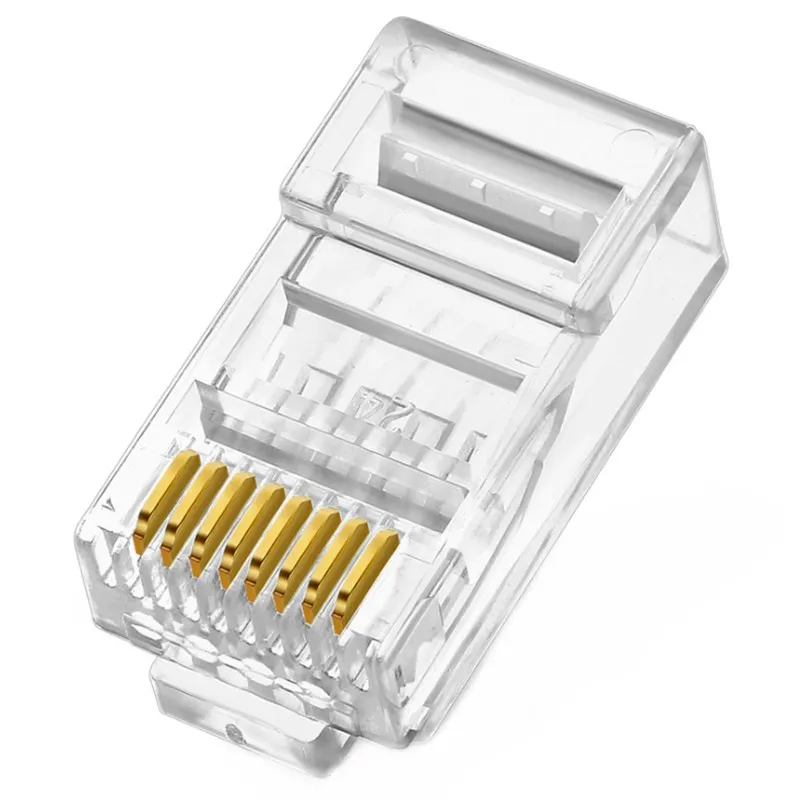

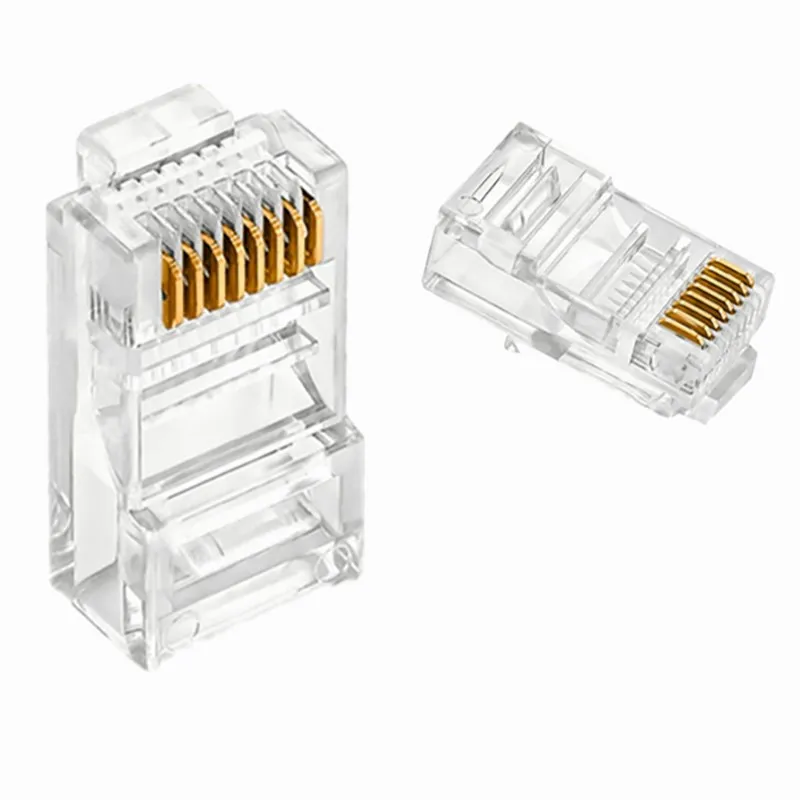

Cat5e RJ45 Plug
Electrical:
1. UL applications: 250V AC, 2A (max.) .
2. Dielectric withstanding voltage: 500V AC.
3. Insulation Resistance: 100MΩ.
4. Termination: Resistance 20MΩ Max After Environmental Testing.
Mechanical:
1. Cable-to-plug Tensile Strength : 20kg Min.
2. Durability : 200 Mating Cycles.
Material & Finish:
1. Housing: Polycarbonate, UL94V-0 Or UL94V-2.
2. Color: Transparent Or Other Color Are Available.
3. Contact Blade: Phosphor Bronze.
4. Temperature range: -40~60°C.
5. Gold Plating: 3u''~50u",are Available.

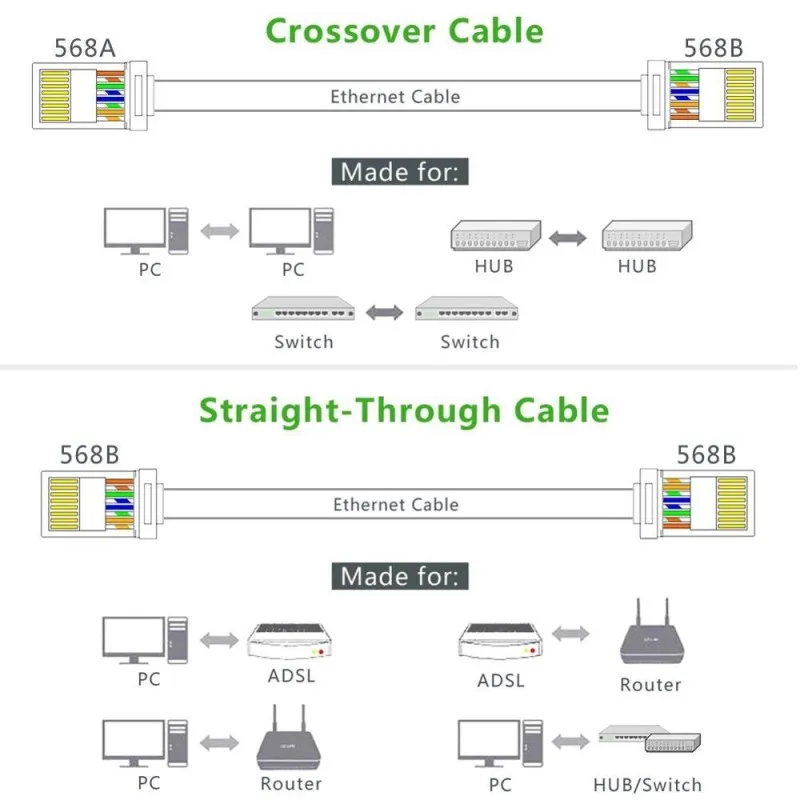

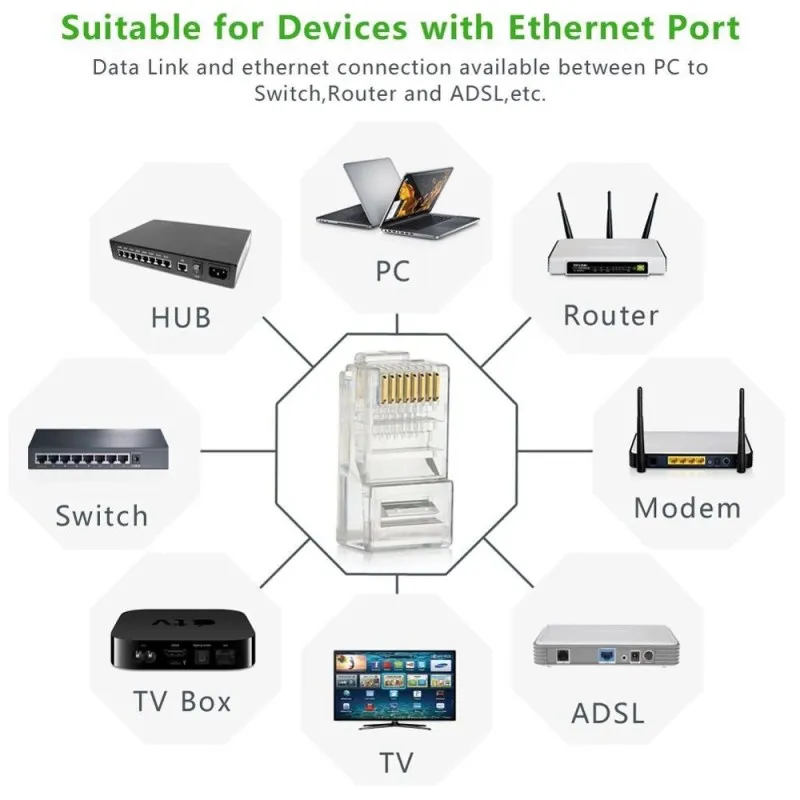

Application: Used for network communication in telecommunication field-cabling systems, Gigabit Ethernet, together with Patch Panel, Face Plate, Patch Cord, Cable Management, Cat5e Cables, etc
